Product Design
G32″
PART OF Otto Wilde Platform
ST finished
CL Otto Wilde Grillers GmbH
BRIEFING:

Otto Wilde had asked us to design a new gas grill, our answer was a smart and modular gas grill platform for passionate grillers. The Otto Wilde Platform.

The centerpiece of the Otto Wilde platform is a robust 32-inch gas grill with a wide range of premium features. Constructed entirely of stainless steel, it serves as the foundation for an architecture designed for maximum flexibility and functionality, without any compromises.
Single Image
Single Image
DESIGN AWARDS:
We are thrilled to announce that our design for the Otto Wilde platform has been recognized with four prestigious international design awards. The platform was awarded the Red Dot Design Award as Best of the Best in 2022, the German Design Award 2023, and the IF Award 2022. The G32" model was also honored with the Red Dot Design Award 2022 in the Smart Products category.
all connected

all connected

Smart or Connected?

Smart or Connected?

With the G32" Connected, the heat distribution is controlled using the knobs on the grill. The exact temperatures of each zone can be read in the app.

The G32" Smart incorporates all the features of the G32" Connected. Furthermore, it includes Smart-Valve technology that enables the grill to level, adjust and maintain a precise temperature automatically. The user simply selects the desired temperature, and the grill takes care of the rest of the process.
This feature is especially helpful for time-consuming grilling jobs that may take several hours or even overnight. The G32" Smart is a highly accurate and intelligent tool for precise grilling. When cooking from the online recipe library, the grill regulates temperature and timing automatically.
G32" smart features

G32" smart features

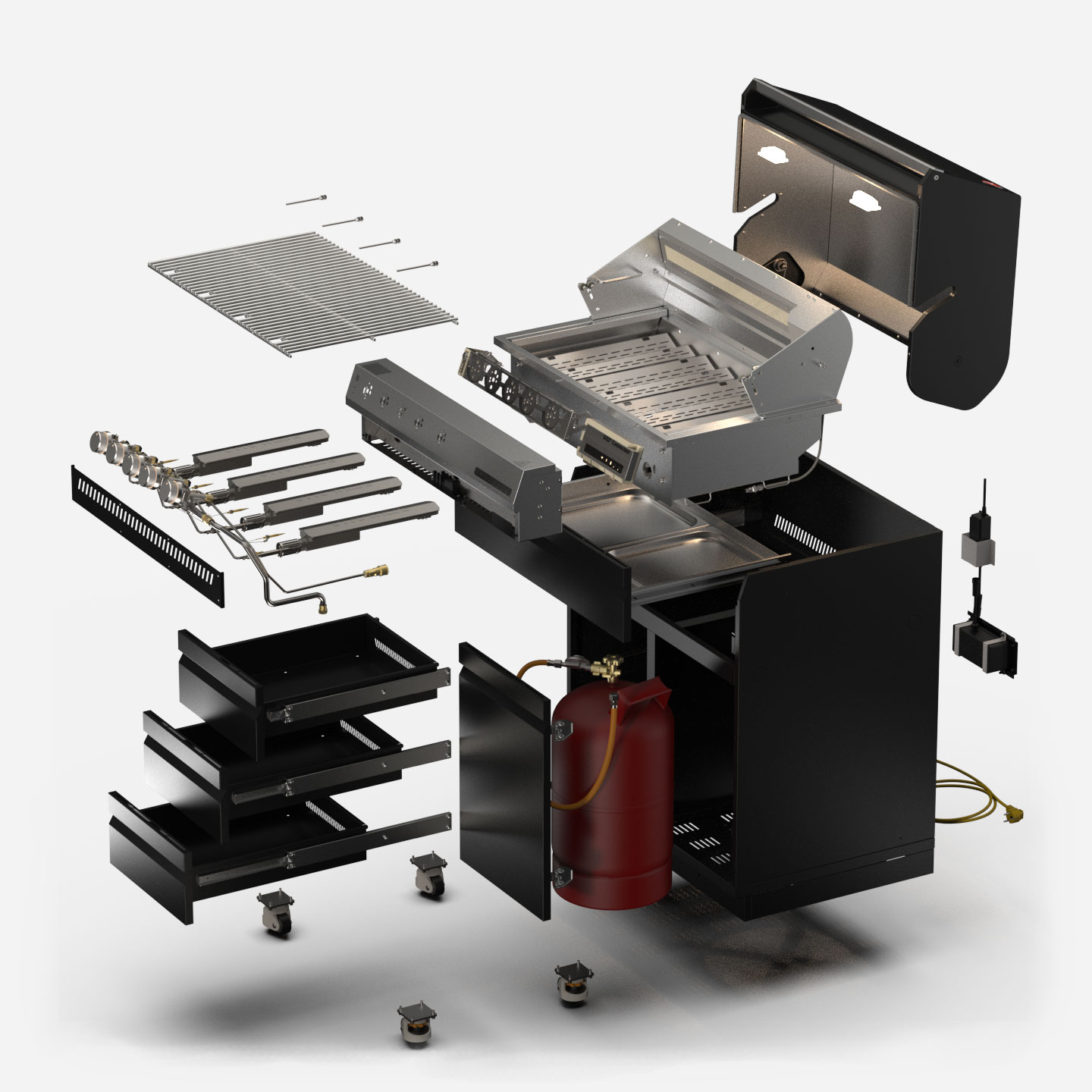

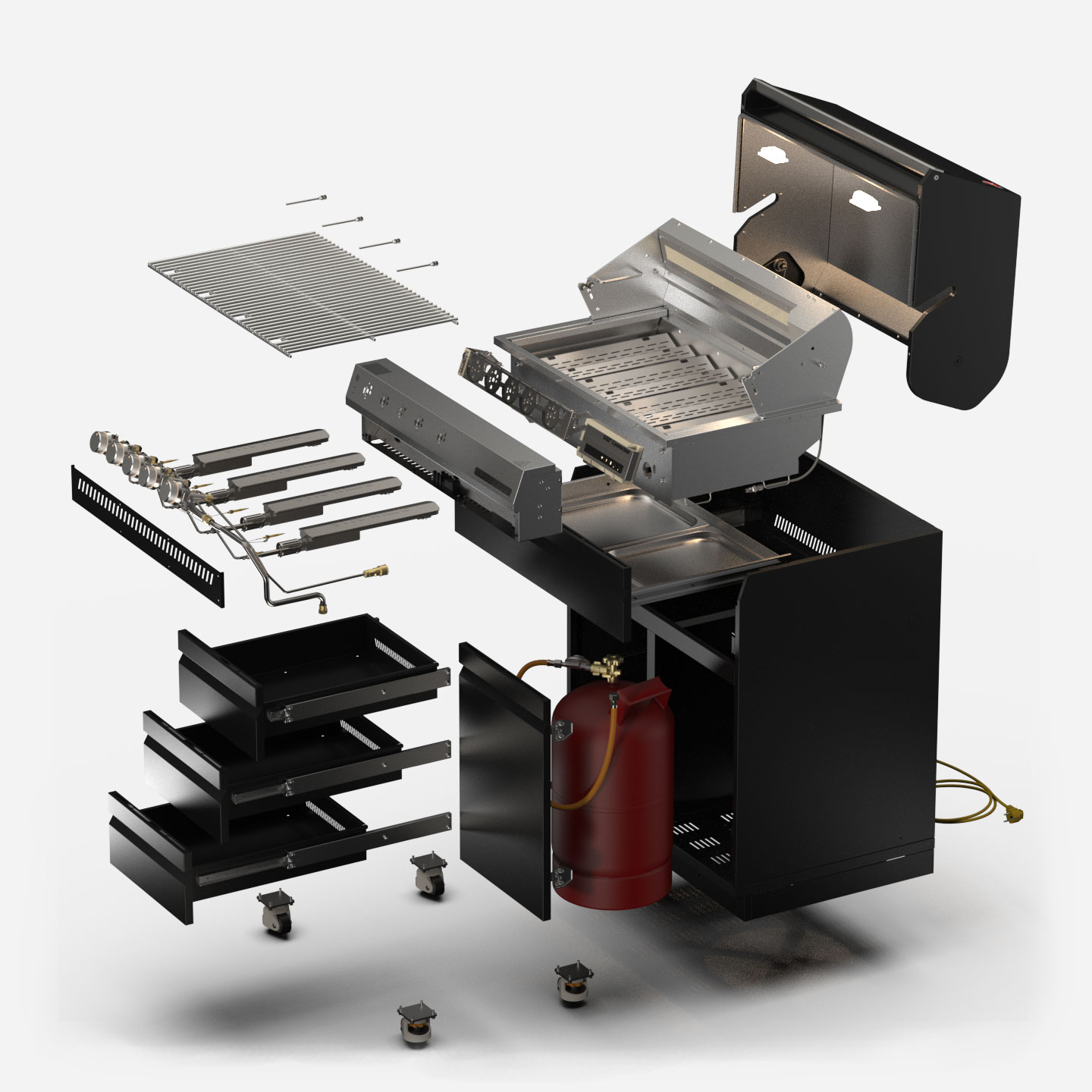

The G32" Firebox

The firebox is designed for optimal heat stability and versatility. It features a variety of functions that you typically wouldn't even find in the absolute premium segment.

Slide 1

Extra-long rotisserie burner

We designed an extra-long rotisserie burner to utilize the full width of the grill. This infrared gas burner has an output of 3.5 kW / 12,000 BTU and heats up to 600°C in a few seconds.

Slide 1

Spacious warming grate

With a size of 75 x 15 cm, the storage grate provides sufficient space to create room while preparing the dishes and utilize the extended temperature zone. When not in use, the grate can be conveniently folded back.

Slide 1

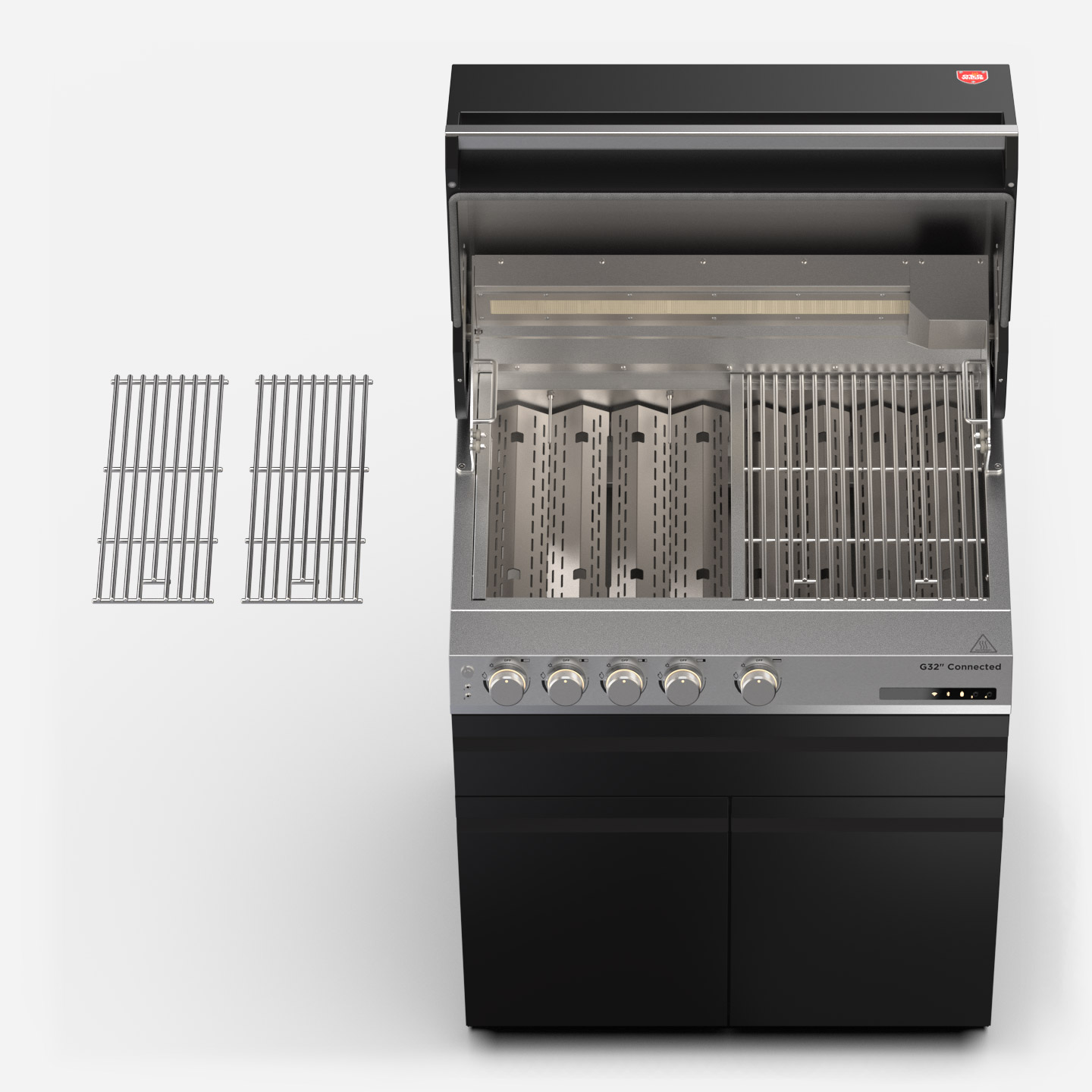

Segmented cooking grates

The massive cooking grates are made of either stainless steel or cast iron. The cooking space is divided into four segments corresponding to the four temperature zones. Each segment is modular and can be used with accessories like griddle plates, pizza stones, or smoker boxes.

Slide 1

Zone seperators

Zone separators can be placed between the grill grates to better divide the temperature zones. When not in use, the metal sheets can be stored on the left and right side of the cooking surface.

Slide 1

Heavy-gauge flame tamer

The massive flame tamers ensure even heat distribution and give the meat a typical grilled flavor by evaporating juices. The modular structure allows for one of them to be replaced with a smoker box.

Slide 1

4 commercial grade burners

The cast stainless steel burners guarantee extremely fast preheating to a maximum temperature of 450°C. At the same time, they are very precise in the lower temperature range. They're usually only found on commercial devices, and they last a lifetime.

Slide 1

Stainless-steel drip plates

When designing the G32, easy cleaning was a main focus. Seamless surfaces and few fixed points are the key to a clean firebox layout. Stainless steel drip plates guide excess oils and fats into the GN-trays underneath. They can be removed from the front and easily cleaned in the dishwasher.

Slide 1

Fat management system

When designing the G32", easy cleaning was a primary focus. A full-extension drawer houses two stainless steel GN-trays that can be effortlessly removed and replaced, even while grilling, and cleaned with ease in a dishwasher.

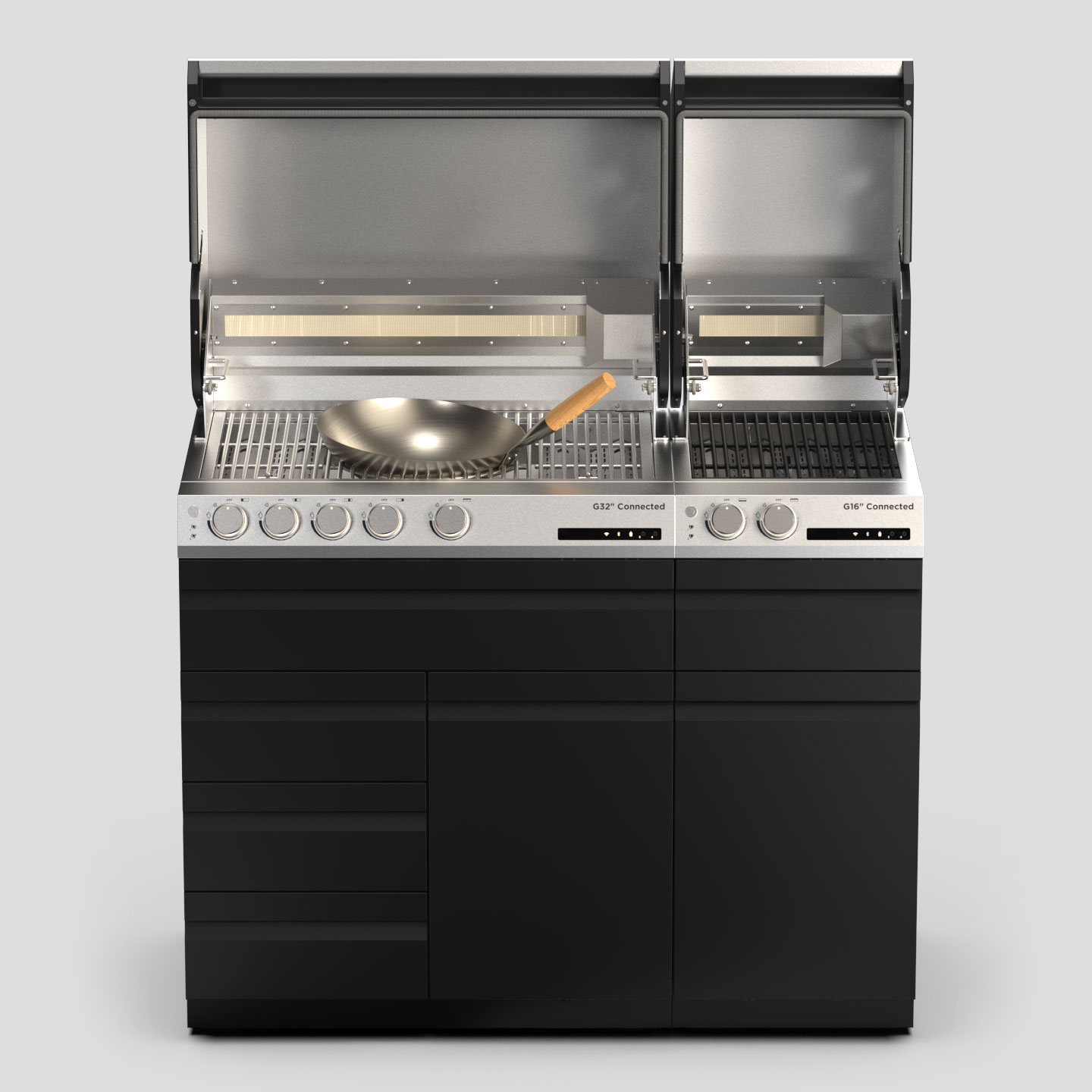

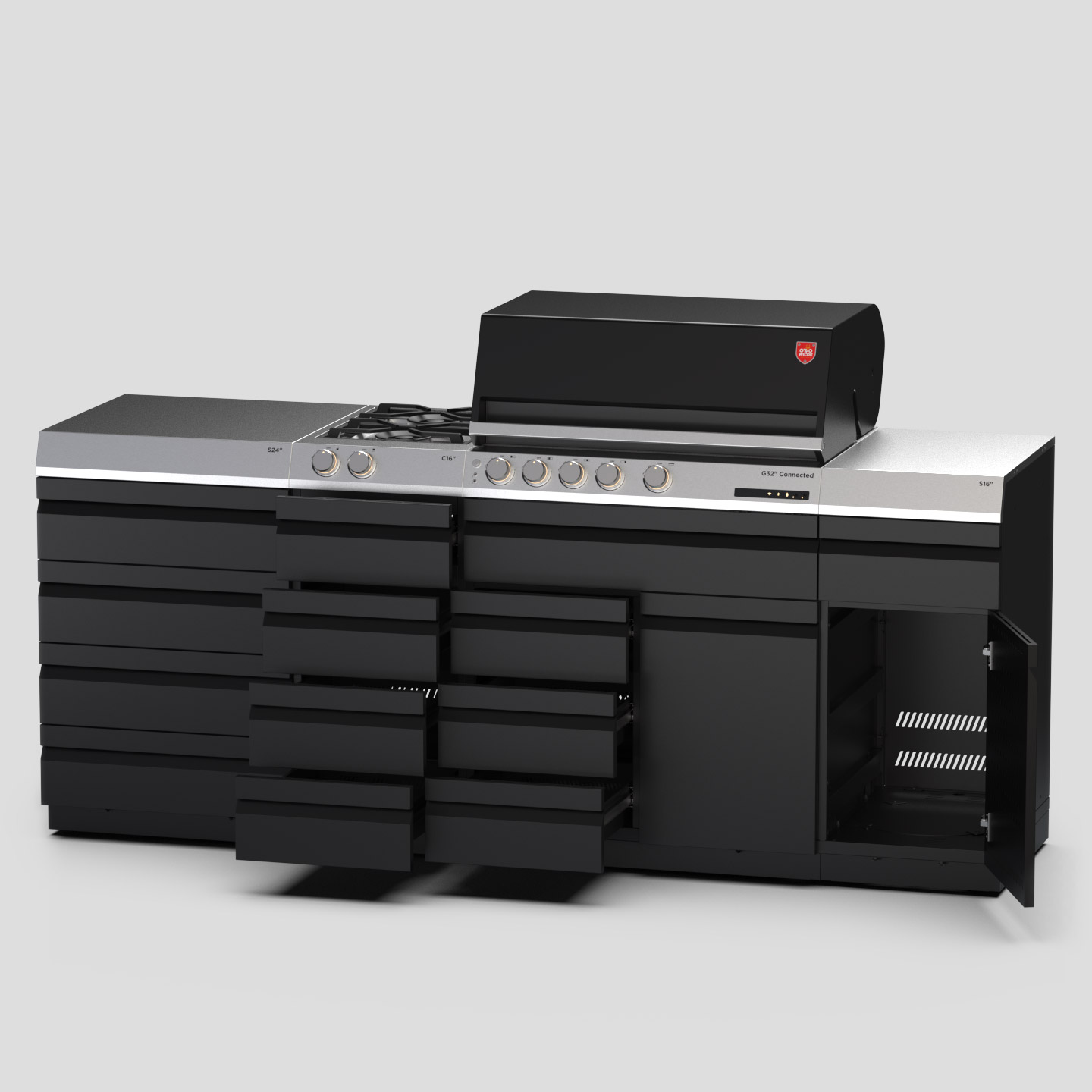

Ultra modularity

Modularity is the key. Individual configuration of grill and storage modules, as well as doors, drawers, and countertops. Inserts such as grates, cutting boards, stainless steel covers, pizza stones, and grill plates can be freely combined.

Slide 1

Building bricks

All modules of Otto‘s platform can be combined individually. New modules can be added to or exchanged to the kitchen unit at any time.

Slide 1

Doors and drawers

The storage space of the modules can be adapted to the needs of the users. Whether with doors or drawers - there is enough space for the equipment. Other design concepts with slide-outs, high drawers, and storage shelves round off a comprehensive storage concept.

Slide 1

Tops

As standard, the storage space modules are designed with a continuous stainless steel worktop. The S32" can also be equipped with an integrated sink as a top. The top of the S16" or S16-AddOn can also be equipped with a hob, as a C16", at a later point in time.

Slide 1

Drawer upgrade

The Otto Wilde Platform is designed to grow with your grilling passion. A storage upgrade from door to drawer is possible at any time, whether 16, 32 or 24 inch.

Slide 1

FlexLine gas delivery system

With the Flex-Line gas delivery system, the gas supply of several modules can be combined from one source, whether with natural gas or from a gas cylinder. The placement of the gas cylinder can be chosen individually.

Slide 1

Modular cover

Modular covers are connected via zippers. That way, they can be expanded later on and protect the outdoor kitchen from soiling by weather and pollen.

Slide 1

100% stainless-steel

The G32" is made entirely of stainless steel; this also applies to all fastening elements and powder-coated parts. This ensures an extremely long lifetime.

without compromise

The G32" includes a double insulated lid, full dome lights, ample storage, precise fine adjustment, push 'n turn pulse ignition, 4 zone probes, leveling casters, and a power brick.

Slide 1

Double insulated lid

The double-walled lid provides effective insulation against external temperatures, while the interior's unique design ensures ideal heat circulation throughout the grilling chamber.

Slide 1

Full dome lights

The halogen spotlights, integrated into the lid, offer even illumination across the entire cooking surface, without any glare to the user. Furthermore, the built-in twilight sensor automatically activates the lights when it gets dark outside.

Slide 1

Massive storage

The huge storage space offers enough space for all standard gas bottles, additional devices and tools. Shelf inserts are designed to customize the storage space according to the user's needs. Stainless steel hinges with a soft-close mechanism provide a comfortable user experience.

Slide 1

Fine adjustment

The valve control for the Connected has a particularly large angle of 180° for accurate setting with LED-illuminated knobs. The precise electronic valve control of the Smart has no stop - better still, the display of the Smart LED assist gives intuitive feedback about the burner intensities of the entire grill surface.

Slide 1

Push´n turn pulse ignition

All G32" models are equipped with high-quality knobs made of solid stainless steel in a classic design. The pulse ignition system ensures a safe ignition process every time the grill is started.

Slide 1

4 built-in zone probes

The Measure where it matters temperature recording system (MWIM) connects 4 integrated temperature sensors and 4 meat probes via Wi-Fi or Bluetooth with the app. Exact temperature values can be displayed, and target temperatures defined without opening the lid - even while on the go.

Slide 1

Leveling casters

The sturdy and compact high-performance casters act as both a stand and height adjustment in one. Furthermore, a matching plinth perfectly complements the look of an ideal outdoor kitchen.

Slide 1

Power brick

We have incorporated another unique feature into our design: a waterproof power strip on the back of each grill and cooking module, which enables users to power additional devices.

FlexLine gas delivery system

FlexLine gas delivery system

The gas supply for modules can be combined from a single source, whether it is natural gas or a gas cylinder.

Tools

Having the right tools can make all the difference. From sturdy tongs and forks to heat-resistant gloves and spatulas, we have designed a wide range of high-quality tools for Otto Wilde.

Slide 1

Rotisserie

The rotisserie fits left and right to the G32" and G16" and can even be connected and inserted through both grill chambers. The motor can be plugged into the power brick on the back of the grill.

Slide 1

Basic Tool Set

The Basic Tool Set is essential for every grill master. It includes universal tongs, a meat fork, a spatula, fire-resistant gloves, and a stainless steel brush for cleaning the grill grates.

Slide 1

Special Tool Set

For special grilling, there are special tools: an aluminum pizza peel, a stainless steel smasher, the griddle dome, rubber-coated tray tongs, and handles to move the plancha or pizza stone.

Slide 1

Meatprobes

At G32, four, and at G16, two core temperature sensors can be connected. Through measurement, one can ensure that it is perfectly cooked without overcooking or undercooking. The dishes obtain their optimal taste, texture, and nutritional value.

Slide 1

Cutting Board

The cutting board for the Otto Wilde Platform is more of a chopping block than a board. Heavy, robust, durable, and non-slip, it is made of oak end grain and integrates perfectly with the platform modules. It can be used not only on the work surface but also placed in the top of the C16 or transform the sink module into a professional food prep station.

Slide 1

Hooks & Trays

To store smaller tools on the inside of the door or on the tool wall, we have designed hooks and trays. These range from single hooks to hook bars, as well as flat and high trays in sizes 16" and 24". Additionally, there are holders for lids, rotisserie rods, and kitchen paper.

Slide 1

Racks

The Single, Double, and Triple Racks are true storage wonders. Accessories in 16 and 8 inches fit into the pull-out drawers with a height of 61 mm. Larger accessories fit on the upper surface. All racks can be stacked.

Built-In

Built-In

The structural design of all grill modules allows for integration of modules without a cart as a built-in option in pre-existing outdoor kitchen setups. It is technically feasible to use a conversion kit to connect the modules to natural gas.

Accessoires

Whether pizza stone, griddle plate, smoker box or grate, all accessories are modular and can be used in the G32", G16" and some of them even in the C16".

Slide 1

Griddle plate

The griddle plate completes the G32", G16" and even the C16". The slightly inclined, solid stainless steel plate is easy to clean and ensures even heat distribution. Remaining fat and roasty bits can easily be pushed into the removable drawer.

Slide 1

Pizza Set

A stone for pizza or tarte flambée. This 16" accessory fits in the G32" and G16". An extension for the C16" with pizza dome is in development.

Slide 1

Smoker box

For smoking with wood chips, Otto‘s platform offers a smoker box for the G32" and G16". This 8" module is used instead of a flame tamer above the burner.

Slide 1

Cast iron- and stainless grates

Whether the user prefers cast iron or stainless steel grates, Otto‘s platform offers the right material for both. The 8" segments fit in the G32", G16" and as inserts in the worktops of the storage modules.

Slide 1

Roasting Baskets

Following the 8" and 16" grid, we have developed roasting baskets that can be inserted into the firebox of the G32 and G16. Vegetables, fish, and other foods are gently roasted, spices and herbs retain their flavors, and the grilled food does not stick and can be turned effortlessly.

Slide 1

Drip Tray

We have designed matching 8" and 16" Drip Trays for the Firebox of G32 and G16. They collect meat juices (e.g., when using the rotisserie) or serve as plates for keeping food warm. With the cast iron handle, they are easy to remove, even when hot.

Specialized Cookware

Grilling is about communication and creativity outdoors. We designed cookware that integrates perfectly into the modular construction of our grills and storage modules.

Slide 1

Pans and Plates

These pans and plates are designed in the 8-inch format and fit perfectly into the firebox of the G32 and G16. The teppan plate can be used both as a grill plate and as a lid for cooking in the skillet pan. The skillet pan is ideal for quick frying as well as for preparing curries and sugos. The flat bottom surface also allows it to be used on the C16.

Slide 1

Roaster

This solid cast iron roaster evenly distributes heat and cooks dishes at a constant temperature. The top and bottom can be used individually or together to prepare large or small quantities of food. Additionally, the top and bottom can also be combined with pans and plates.

Slide 1

Grate with round insert

The CAST IRON SET 2, made of solid cast iron, enables grill beginners and enthusiasts to enter the world of round accessory systems. With a hole diameter of 35cm, it is ideally suited for the Dutch Oven, wok, and in the future also for further pots, pans, glazed pizza stones, special grill grates, and much more.

Slide 1

Multi Dutch Oven

This Dutch oven is incredibly versatile, offering a multitude of outdoor cooking options with charcoal. Additionally, it seamlessly integrates into the Otto Wilde Platform for the G32, G16, and C16. At the heart of this versatile cooking tool is a 6-liter cast-iron pot. The two-sided lid and stove provide even more cooking options, including frying, searing, steaming, and direct grilling.

Slide 1

Wok Set

The wok set, specially designed for Otto Wilde, includes a ring for use on the C16 and a classic wok with an internally attached handle for the wooden grip, which also enables use with the cast iron set 2 on the G32 and G16.

to all passionate grillers and GSV-Members:
Please be aware that the content of this site displays products from the perspective of a design draft, as we presented the draft to Otto Wilde. Naturally, some details have been altered during product development. As the product has now improved, we strongly recommend it to customers, but kindly ask that you visit Otto Wilde's website to obtain information on the current state of development.
